Solid-State Power Amplifiers and Transmitters

  • Ruggedized for use in pulsed airborne, naval and ground radar
  • Found in weather forecasting Doppler radar systems
  • Utilized world-wide in air traffic control and precision approach radar systems

Featuring:

  • Gallium Nitride transistor technology

  • Air-cooled or liquid-cooled
  • Hermetically sealed for harsh environments
  • Pulsed up 20% duty
  • Designed for demanding applications
  • Frequencies from 1 GHz to 10 GHz
  • Power levels from 1 kW to 50 kW

Benefits:

  • High gain
  • Excellent pulse fidelity
  • Outstanding spectral performance

Please contact CPI EDB to assist you with your solid-state pulsed amplifier needs:
ElectronDevices@cpi-edb.com

CPI EDB Solid State Power Amplifiers (SSPA) and Transmitters

Product DescriptionFrequency (Min) (GHz)Frequency (Max) (GHz)Peak Power Output (kW)Pulsed / CWModel Number

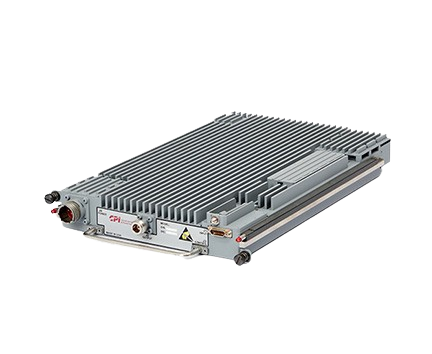

S-Band 1.3 kW Solid-State Amplifier (SSPA) VSS36072.72.91.3PulsedVSS3607
S-Band 1.3 kW Solid-State Amplifier (SSPA) VSS36342.63.01.3PulsedVSS3634
S-Band 12 kW Solid-State Amplifier (SSPA) VSS37052.72.912.0PulsedVSS3705
S-Band 2.1 kW Solid-State Amplifier (SSPA) VSS3627-33.13.52.1PulsedVSS3627-3
X-Band 1.0 kW Solid-State Transmitter VSX3696ON9.010.01.0PulsedVSX3696ON
X-Band 1.5 kW Solid State Amplifier (SSPA) VSX37469.010.01.5PulsedVSX3746
X-Band 1.5 kW Solid-State Amplifier (SSPA) VSX37169.010.01.5PulsedVSX3716
X-Band 300 W min Solid-State Amplifier (SSPA) PTS102248.59.60.4 typ.PulsedPTS10224
X-Band 4.0 kW Solid-State RF Transmitter VSX37179.010.04.0PulsedVSX3717

CPI EDB Solid State Power Amplifier (SSPA) Capability Table

Product DescriptionFrequency (Min) (GHz)Frequency (Max) (GHz)Peak Power Output (W)Duty Cycle (%)Model Number
X-Band 1000 W Microwave Power Module (MPM) PTX85019.010.0100010PTX8501
Broadband 100 W Microwave Power Module (MPM) PTXM10568.515.0100100PTXM1056
Broadband 140 W Microwave Power Module (MPM) PTXM10578.515.0140100PTXM1057
Broadband 100 W Microwave Power Module (MPM) PTXM1052m8.515.0100100PTXM1052
Broadband 100 W Microwave Power Module (MPM) PTXM97546.018.0100100PTXM9754
Broadband 125 W Microwave Power Module (MPM) PTXM10596.018.0125100PTXM1059
Broadband 140 W Microwave Power Module (MPM) PTXM10696.018.0140100PTXM1069
Broadband 160 W Microwave Power Module (MPM) PTX81106.018.0200100PTX8110
Ka-Band 160 W Microwave Power Module (MPM) PTX881130.040.0115-160100PTX8811
Ka-Band 115 W Microwave Power Module (MPM) PTX880826.540.060-115100PTX8808
Broadband 100 W Microwave Power Module (MPM) PTS101472.06.090-100100PTS10147
Ku-Band 600 W Microwave Power Module (MPM) PTX862115.517.56007PTX8621
Ku-Band 110 W Microwave Power Module (MPM) PTXM105814.414.8110100PTXM1058
Ku-Band 110 W Microwave Power Module (MPM) PTXM100013.7514.5110100PTXM1000
