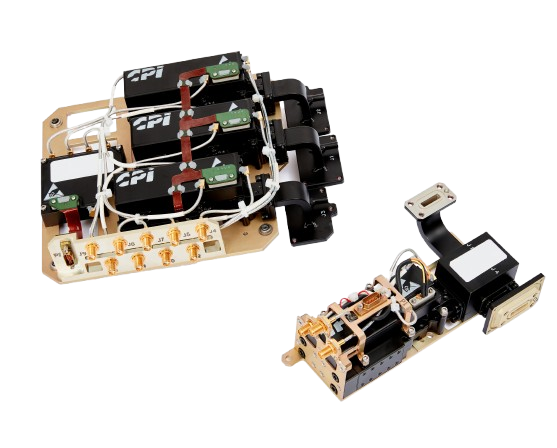

Integrated Microwave Assemblies (IMAs)

CPI EDB’s instrumentation amplifiers (high-power RF and microwave amplifiers) for electromagnetic compatibility (EMC) high-intensity radiated field (HIRF) testing, military testing, electronic warfare simulation and scientific applications are based on switched-mode power supply technology.

Featuring:

  • High power handling
  • Low-noise figure
  • Calibrated couplers
  • Variable attenuation
  • Frequencies from 100 MHz to 40 GHz

Benefits:

  • Easy to maintain
  • Easily scalable for higher output powers
  • Excellent pulse fidelity
  • Exceptional AM/PM, phase-noise and Spectral regrowth performance

Please contact CPI EDB for your specific requirements. ElectronDevices@cpi-edb.com

Featuring:

  • EMC HIRF testing – meeting the most demanding RTCA/DO-160 requirements
  • Military testing for MIL Std 461 200 V/m
  • Rugged, ultra-reliable design
  • Customizable chassis and soft re-configurable control system
  • Advanced System-on-Chip (SOC) microcircuit
  • Auto logging
  • Switched mode power supply technology
  • RF forward and reverse sample ports
  • 100 to 240 VAC single phase
  • Remote management
  • Frequency range 2 GHz to 50 GHz range in both pulsed and CW modes

Benefits:

  • Advanced self-diagnostics
  • Ethernet interfaces
  • VSWR protection and plug and play field replaceable power supplies

CPI EDB continues to innovate with its range of ultra-high power HIRF amplifiers that achieve the highest CW and Pulsed output power. Customers using CPI amplifiers have generated output power of 14,000 V/m, complying with the latest demanding RTCA/DO-160 requirements. Both TWT and solid-state instrumentation amplifier options are available.

Please contact CPI EDB to assist you with your unique MPM needs.
