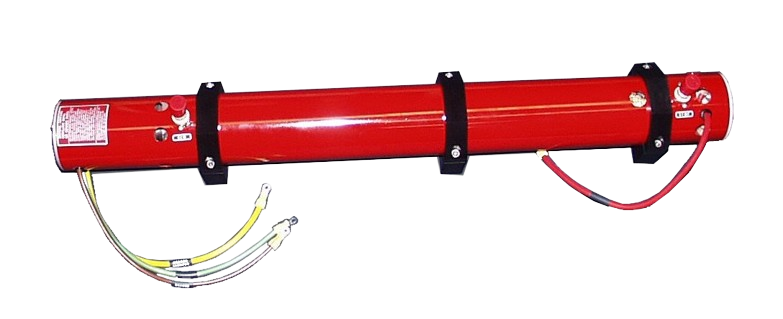

CPI EDB – Beverly Microwave Division manufactures L, S, and C-band ring loop travelling wave tubes for ground based and shipboard tracking radars and commercial weather radar

Featuring:

  • Ring-loop circuit design

Benefits:

  • Proven products at L-Band, C-Band, S-Band, Ku-Band & X-Band
  • Long life
  • Reliable operation

Please contact CPI EDB to assist you with your ring-loop TWT needs. ElectronDevices@cpi-edb.com

C-Band

Product DescriptionFrequency (Min) (GHz)Frequency (Max) (GHz)Peak Power Output (kW)Pulse Width (µs)Duty CycleModel Number
C-Band TWT VTC5260H15.405.906.00201.8VTC5260H1
C-Band TWT VTC5262B1K5.405.906.002015VTC5262B1K
